Schuiven

Geneva - Switzerland tunnel sliding

Insertion of 630-ton bicycle/pedestrian tunnel over 46m, under the railway, in Geneva, Switzerland.

Project details

In order to realise the new cycle and pedestrian tunnel under the railway in Quartier l’Etang, we have moved this tunnel from the pre-construction location to its final position. This work took place during a 54-hour out-of-service period, which prevented long-term disruption to the railways.

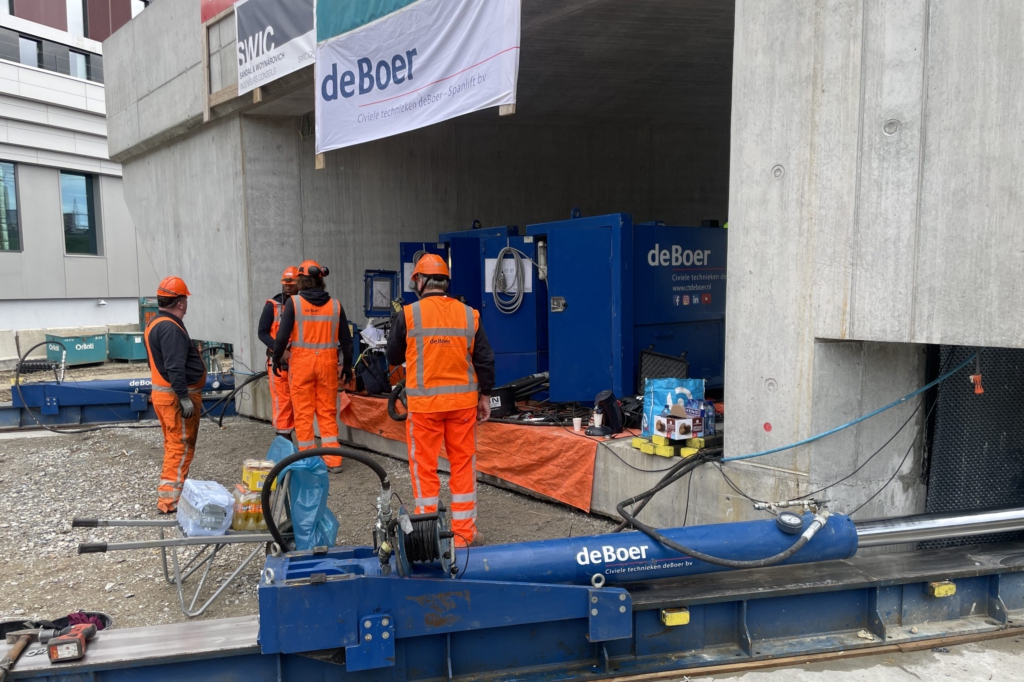

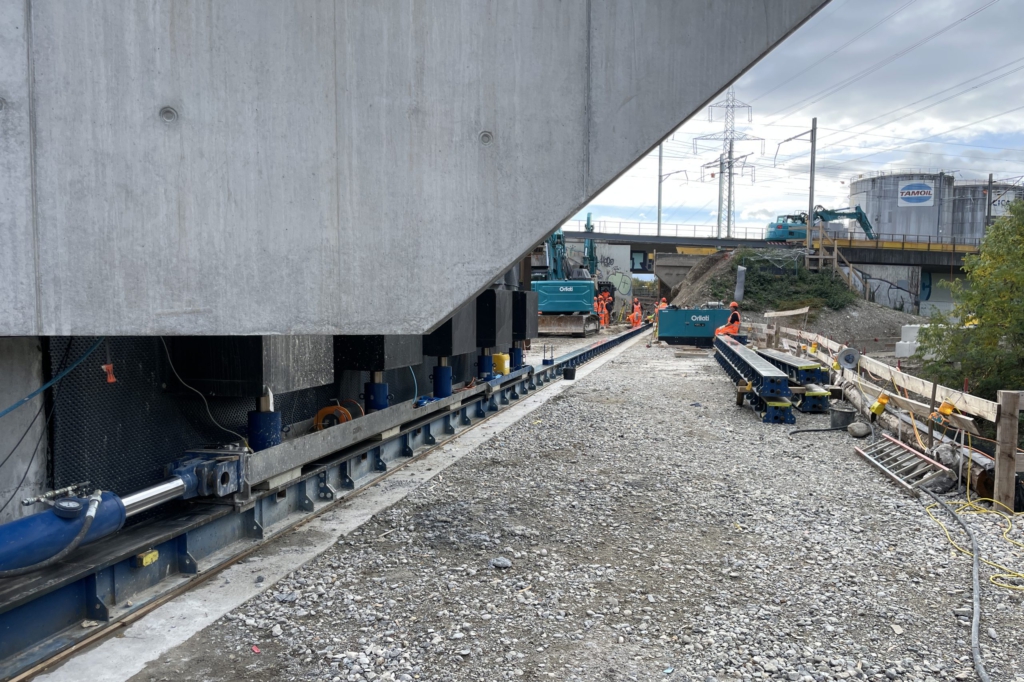

Duwunits schuiftunnel
bijschrift

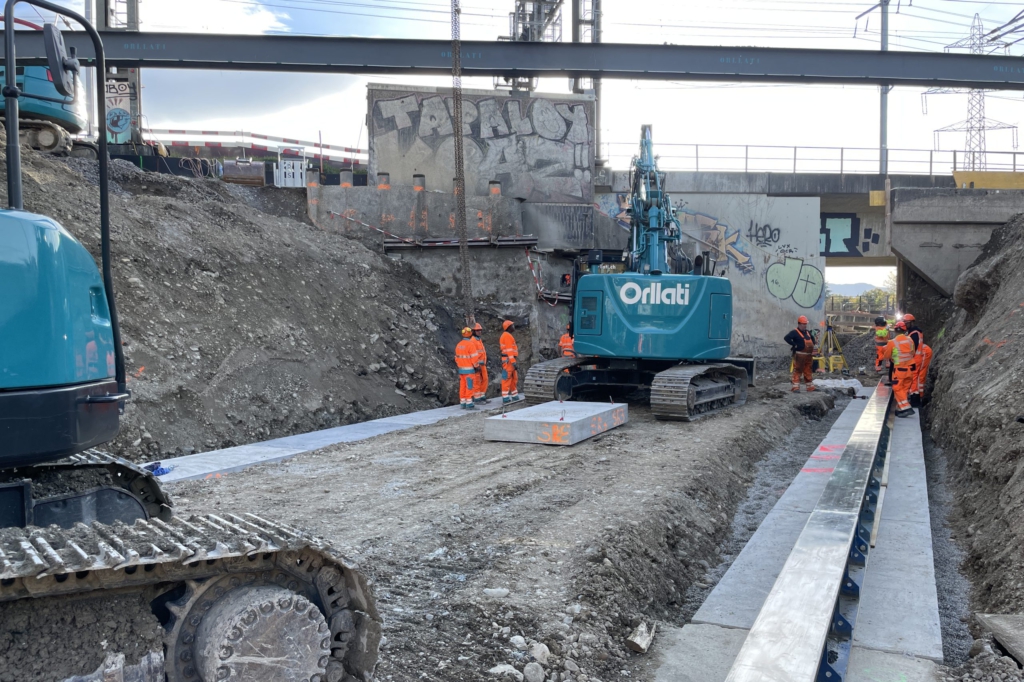

Grondwerk

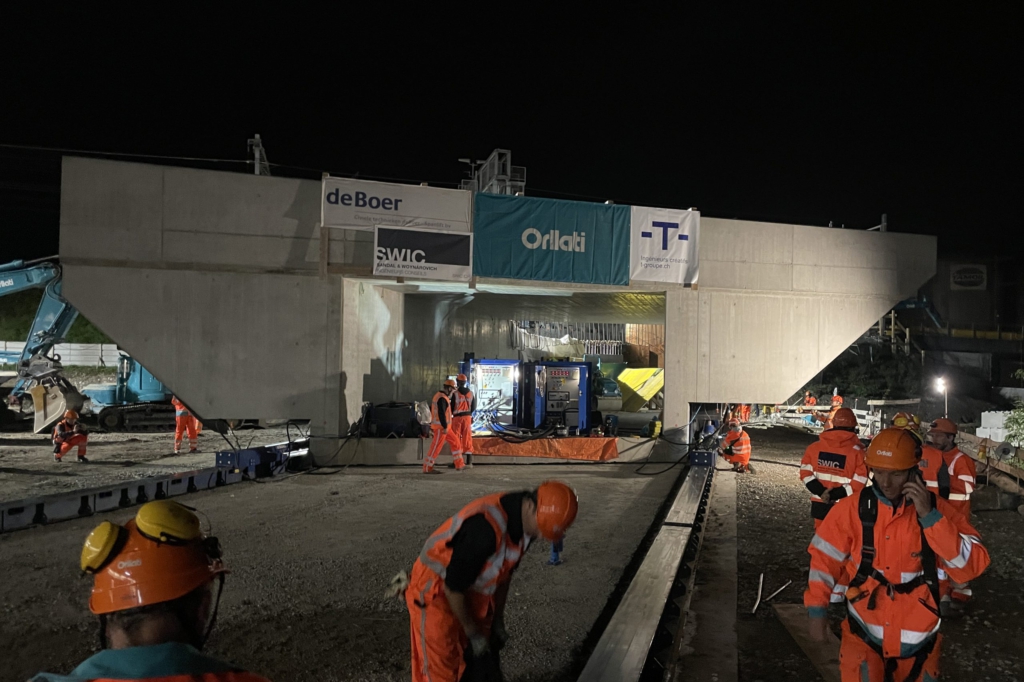

Tunnel in positie

  • Location Geneva, Switzerland

  • Client SBB CFF FFS (Swiss Railways)

  • Main Contractor Groupe Orllati SA

  • Mass tunnel 630 tons

  • Sliding distance 46 meters

  • Sliding tracks 2 sliding axes, on concrete slabs

  • Pusher units 100 ton units on 2 tracks
